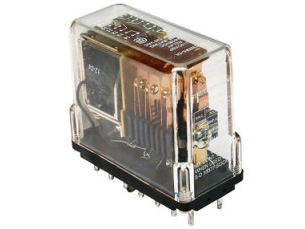

Struthers-Dunn 219 Series

Versatile. Rugged. Proven. These are but a few words used by customers to describe the 219 series. When long life and cost of down time / service are important the 219 solves the problem. It’s a standard throughout industrial applications which many other relays are measured against. Capable of up to four poles double throw or six poles single throw. Contact arrangements are easily customized for special applications. NUCLEAR versions available.
The 219 Relay is qualified by Wyle Laboratories to the following standards:
IEEE Standard 323-1974 “IEEE Standard for Qualifying Class 1E Equipment for Nuclear Power Generating Stations”
IEEE Standard 344-1975 “IEEE Recommended Practices for Seismic Qualification of Class 1E Equipment for Nuclear Power Generating Stations”
Click Here to view the PDF Datasheet for 219 Series – Industrial General Purpose Relays



Product Description

Item #
Contact Arrangement
Optional Features
Coil Voltage
219ABA69P-115/125VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Permanent Magnet Blowout
Polycarbonate covers
115/125 VDC
219ABA69PL-24VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
24 VDC
219ABAP-24VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate Covers 24 VAC
219ABAP-120VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate Covers 120 VAC
219ABAP-24VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate Covers 24 VDC
219ABAP-115/125VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate Covers 115/125 VDC
219ABAP33-120VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Bifurcated Contacts
120 VAC
219ABAP33-115/125VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Bifurcated Contacts
115/125 VDC
219ABAPL-24VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
24 VAC
219ABAPL-120VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
120 VAC
219ABAPL-24VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
24 VDC
219ABAPL-115/125VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
115/125 VDC
219ABAPLM-120VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219ABAPLM-115/125VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
Manual Actuator
115/125 VDC
219ABAPLM33-24VDC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
24 VDC
219ABAPM-120VAC ABA (1 Pole N.O. + DPDT + 1 Pole N.C.) Polycarbonate covers
Manual Actuator
120 VAC
219BBX69P-115/125VDC BBX (2 Pole NO & DPDT) Permanent Magnet Blowout
Polycarbonate covers
115/125 VDC
219BBX69PL-24VDC BBX (2 Pole NO & DPDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
24 VDC
219BBX69PL -125VDC BBX (2 Pole NO & DPDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
125 VDC
219BBXP-24VAC BBX (2 Pole NO & DPDT) Polycarbonate Covers 24 VAC
219BBXP-120VAC BBX (2 Pole NO & DPDT) Polycarbonate Covers 120 VAC
219BBXP-240VAC BBX (2 Pole NO & DPDT) Polycarbonate Covers 240 VAC
219BBXP-24VDC BBX (2 Pole NO & DPDT) Polycarbonate Covers 24 VDC
219BBXP-115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate Covers 115/125 VDC
219BBXP33-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Bifurcated Contacts
120 VAC
219BBXP33-24VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Bifurcated Contacts
24 VDC
219BBXP33-115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Bifurcated Contacts
115/125 VDC
219BBXPL-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
120 VAC
219BBXPL-240VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
240 VAC
219BBXPL-24VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
24 VDC
219BBXPL-115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
115/125 VDC
219BBXPL33-24VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
24 VAC
219BBXPL33-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
120 VAC
219BBXPL33-240VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
240 VAC
219BBXPL33-24VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
24 VDC
219BBXPL33-115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
115/125 VDC
219BBXPLM-24VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
24 VAC
219BBXPLM-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219BBXPLM-240VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
240 VAC
219BBXPLM -115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
115/125 VDC
219BBXPLM33-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
120 VAC
219BBXPLM33-24VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
24 VDC
219BBXPM-120VAC BBX (2 Pole NO & DPDT) Polycarbonate covers
Manual Actuator
120 VAC
219BBXPM-115/125VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Manual Actuator
115/125 VDC
219BBXPM33-24VDC BBX (2 Pole NO & DPDT) Polycarbonate covers
Manual Actuator
Bifurcated Contacts
24 VDC
219DXB69P-115/125VDC DXB (4 Pole – NO & 2 Pole-NC) Permanent Magnet Blowout
Polycarbonate covers
115/125 VDC
219DXBP-24VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate Covers 24 VAC
219DXBP-120VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate Covers 120 VAC
219DXBP-24VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate Covers 24 VDC
219DXBP-115/125VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate Covers 115/125 VDC
219DXBPL-120VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
120 VAC
219DXBPL-24VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
24 VDC
219DXBPL-125VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
125 VDC
219DXBPLM-120VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219DXBPLM-24VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
Manual Actuator
24 VDC
219DXBPLM-115/125VDC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
Manual Actuator
115/125 VDC
219DXBPLM33-120VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
120 VAC
219DXBPM-24VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Manual Actuator
24 VAC
219DXBPM-120VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Manual Actuator
120 VAC
219DXBPM-240VAC DXB (4 Pole – NO & 2 Pole-NC) Polycarbonate covers
Manual Actuator
240 VAC
219FXX69P-115/125VDC FXX (6 Pole-NO) Permanent Magnet Blowout
Polycarbonate covers
125 VDC
219FXX69PL-24VDC FXX (6 Pole-NO) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
24 VDC
219FXXP-120VAC FXX (6 Pole-NO) Polycarbonate Covers 120 VAC
219FXXP-240VAC FXX (6 Pole-NO) Polycarbonate Covers 240 VAC
219FXXP-24VDC FXX (6 Pole-NO) Polycarbonate Covers 24 VDC
219FXXP-115/125VDC FXX (6 Pole-NO) Polycarbonate Covers 115/125 VDC
219FXXP33-24VDC FXX (6 Pole-NO) Polycarbonate covers
Bifurcated Contacts
24 VDC
219FXXPL-120VAC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
120 VAC
219FXXPL-24VDC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
24 VDC
219FXXPL-115/125VDC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
115/125 VDC
219FXXPL33-240VAC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
240 VAC
219FXXPLM-24VAC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
Manual Actuator
24 VAC
219FXXPLM-120VAC FXX (6 Pole-NO) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219FXXPM-24VDC FXX (6 Pole-NO) Polycarbonate covers
Manual Actuator
24 VDC
219FXXPM-115/125VDC FXX (6 Pole-NO) Polycarbonate covers
Manual Actuator
115/125 VDC
219FXXPM33-240VAC FXX (6 Pole-NO) Polycarbonate covers
Manual Actuator
Bifurcated Contacts
240 VAC
219XBX69P-115/125VDC XBX (DPDT) Permanent Magnet Blowout
Polycarbonate covers
115/125 VDC
219XBX69P-24VDC XBX (DPDT) Permanent Magnet Blowout
Polycarbonate covers
24 VDC
219XBX69PL-24VDC XBX (DPDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
24 VDC
219XBX69PL-125VDC XBX (DPDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
125 VDC
219XBX69PLM-120VAC XBX (DPDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219XBXP-24VAC XBX (DPDT) Polycarbonate Covers 24 VAC
219XBXP-120VAC XBX (DPDT) Polycarbonate Covers 120 VAC
219XBXP-240VAC XBX (DPDT) Polycarbonate Covers 240 VAC
219XBXP-24VDC XBX (DPDT) Polycarbonate Covers 24 VDC
219XBXP-115/125VDC XBX (DPDT) Polycarboxnate Covers 115/125 VDC
219XBXPL-120VAC XBX (DPDT) Polycarbonate covers
Indicator Lamp
120 VAC
219XBXPL-24VDC XBX (DPDT) Polycarbonate covers
Indicator Lamp
24 VDC
219XBXPL-115/125VDC XBX (DPDT) Polycarbonate covers
Indicator Lamp
115/125 VDC
219XBXPL33-120VAC XBX (DPDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
120 VAC
219XBXPLM-120VAC XBX (DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219XBXPLM-115/125VDC XBX (DPDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
115/125 VDC
219XBXPM-24VAC XBX (DPDT) Polycarbonate covers
Manual Actuator
24 VAC
219XDX69P-120VAC XDX (4PDT) Permanent Magnet Blowout
Polycarbonate covers
120 VAC
219XDX69P-24VDC XDX (4PDT) Permanent Magnet Blowout
Polycarbonate covers
24 VDC
219XDX69P-125VDC XDX (4PDT) Permanent Magnet Blowout
Polycarbonate covers
125 VDC
219XDX69PL-120VAC XDX (4PDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
120 VAC
219XDX69PL-125VDC XDX (4PDT) Permanent Magnet Blowout
Polycarbonate covers
Indicator Lamp
125 VDC
219XDXP-120VAC XDX (4PDT) Polycarbonate Covers 120 VAC
219XDXP-240VAC XDX (4PDT) Polycarbonate Covers 240 VAC
219XDXP-24VDC XDX (4PDT) Polycarbonate Covers 24 VDC
219XDXP-115/125VDC XDX (4PDT) Polycarbonate Covers 115/125 VDC
219XDXP33-120VAC XDX (4PDT) Polycarbonate covers
Bifurcated Contacts
120 VAC
219XDXPL-120VAC XDX (4PDT) Polycarbonate covers
Indicator Lamp
120 VAC
219XDXPL-240VAC XDX (4PDT) Polycarbonate covers
Indicator Lamp
240 VAC
219XDXPL-24VDC XDX (4PDT) Polycarbonate covers
Indicator Lamp
24 VDC
219XDXPL-115/125VDC XDX (4PDT) Polycarbonate covers
Indicator Lamp
115/125 VDC
219XDXPL33-120VAC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Bifurcated Contacts
120 VAC
219XDXPLM-120VAC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
120 VAC
219XDXPLM-24VDC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
24 VDC
219XDXPLM-115/125VDC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
115/125 VDC
219XDXPLM33-120VAC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
120 VAC
219XDXPLM33-24VDC XDX (4PDT) Polycarbonate covers
Indicator Lamp
Manual Actuator
Bifurcated Contacts
24 VDC
